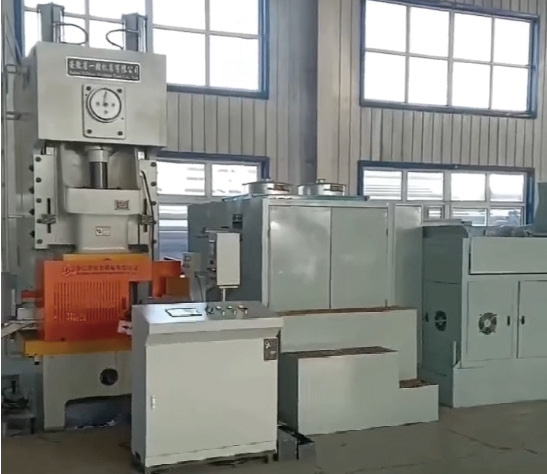

Characteristics of LB series screw hot forging manipulator

1. Good safety: The punch press worktable is equipped with a protective plate to prevent raw materials or mold fragments from flying out and injuring people in the event of a malfunction;

2. Small footprint: The robotic arm is directly installed on the lower template without taking up additional space;

3. Fast production speed: The robotic arm is directly installed on the template, with a short stroke and fast speed;

4. Effort saving and safety in mold replacement: Traditional mold locking requires the use of a large wrench and a hammer to strike and lock, which can lead to safety accidents. Now it has been changed to lock 6 screws, without the need for a large hammer, saving effort and preventing accidents such as fragments flying out or accidental injuries.

5. Equipment used: Adopting enclosed coils, energy-saving, existing induction furnaces can generally be used without replacement.

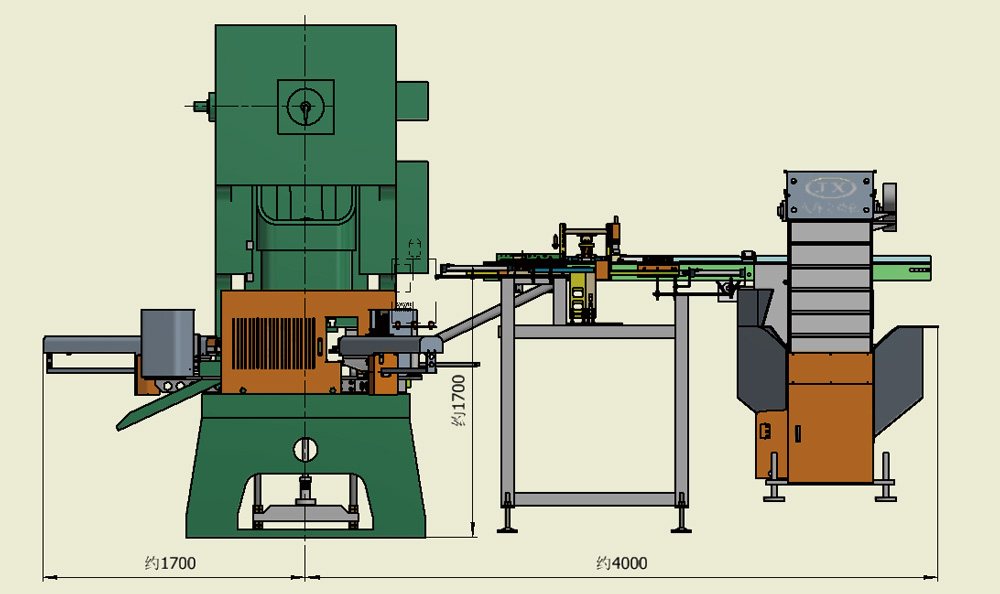

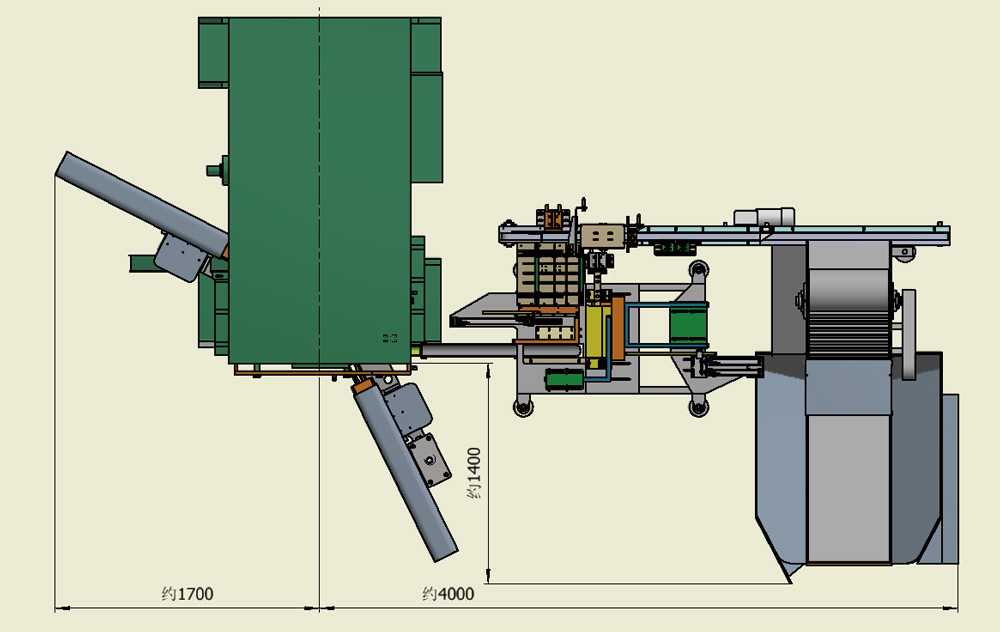

Main components of LB series screw hot forging manipulator

1. Fully automatic feeding machine: lifts the bar material from the hopper to the conveyor belt and automatically arranges it to move in a straight line;

2. Fully automatic splitting device: Based on the detection signal, the bar material is automatically split and enters the heating device in the required direction;

3. Fully automatic local heating device: The screw blank is heated in the electric furnace as required, using a closed coil for energy saving;

4. Electric furnace: self purchased according to requirements, existing ones will be repositioned according to the buyer's requirements (usually raised);

5. Punch press: self purchased or modified according to requirements;

6. Mold frame and mold: existing by the buyer or provided by the seller;

7. Fully automatic screw hot forging manipulator: installed on the mold frame for use.

Application scenarios of LB series screw hot forging manipulator

1. Fully automatic necking mechanism;

2. Fully automated production of locally heated screws;

3. Fully automated production of a fully heated (all red) screw;

4. Fully automatic local heating screw, heating speed not less than 20 pieces/minute, generally no need to replace the electric furnace, manual production.

Technical Parameter

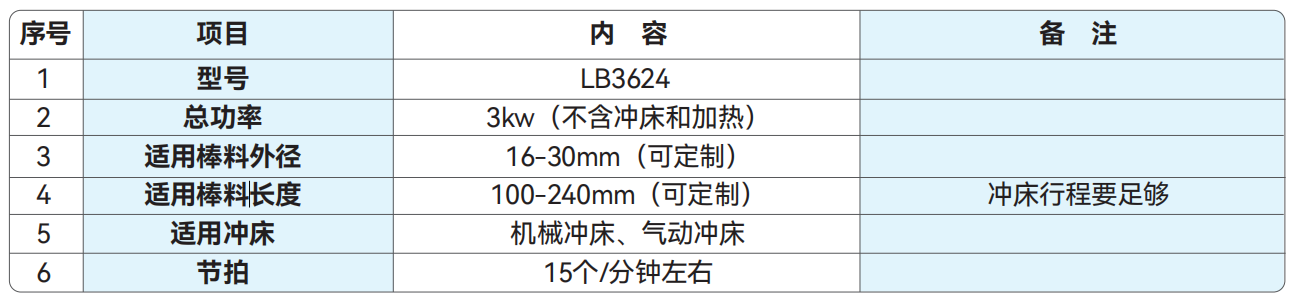

Model LB3624

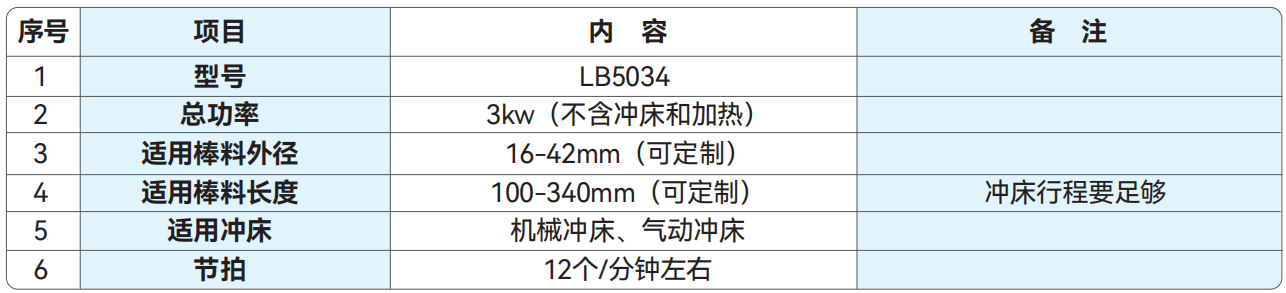

Model LB5034

Special note: The length of the screw that can be produced is determined by the stroke of the punch press. If you want to use a push-pull die to produce long screws, it needs to be customized. This device is a non-standard customized product. The model, configuration, appearance, etc. are subject to the actual product. If there are any changes, no further notice will be given.
